Lifting arm Neo HV

When to choose a Neo HV lifting arm:

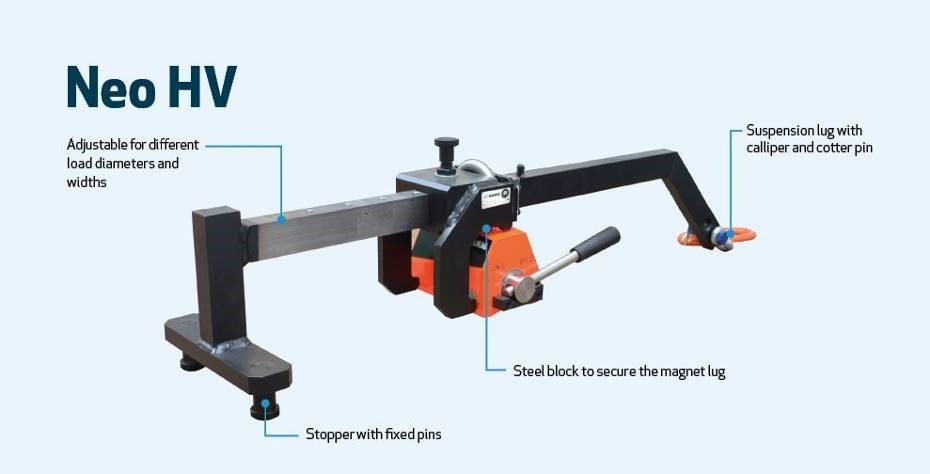

The Neo HV is a lifting arm, thanks to which, in combination with a lifting magnet, you can easily turn a workpiece from the horizontal to the vertical position. You will appreciate this when handling sheets, metal plates and round materials for lathes and horizontal machining centres.

Advantages:

Possibility to adjust the arm to a wide range of diameters and widths
Removable lifting arm for magnet replacement
Robust lifting eye

Additional information:

The lifting magnet is not included.
The individual models of HV liftarm are compatible with NEO 250, 500 and 1000 capacities

Description

Detailed description:

The Neo HV lifting arm, in connection with a Neo lifting magnet, is a versatile aid for handling loads from the horizontal to the vertical position and vice versa. For example, if a plate is on a pallet and you need to move it to a lathe, you must usually make use chains, clamps, and at least two workers. With a lifting arm equipped with a Neo permanent lifting magnet, you will save manpower and make the operation more efficient.

Important parameters:

Application: Lifting
Technology: Permanent
Nominal lifting capacity for flat material: up to 1000 kg
Safety factor: 3:1
Guarantee: 2 years

Additional information:

The lifting magnet is not included.

Use:

For manoeuvring workpieces to horizontal machining centres and lathes

Scope of supply:

Lifting arm
Certificate
Instructions for use
Neo HV schematics

Neo HV drawing

Model	W (mm)	L (mm)	H (mm)	Lifting capacity (kg)	Workpiece width (mm)	Weight without magnet (kg)
LARM250	210	958	244	250	300-800	16
LARM500	210	1158	244	500	300-1000	20
LARM1000	210	1211	297	1000	300-1000	33
