Description
We represent exclusively the Italian company Dierre, whose SPLIT series concerns multi-functional fire doors, which fully meet the relevant demand for installation in homes, supermarkets, boilers and elsewhere, in accordance with the New Building Fire Protection Regulation, Certified fire resistance EI2 60 (60 minutes) and EI2120 (120 minutes), according to the European standard EN 1634-1.
Available in standard dimensions-color and also according your special request.
This post is also available in:
Greek

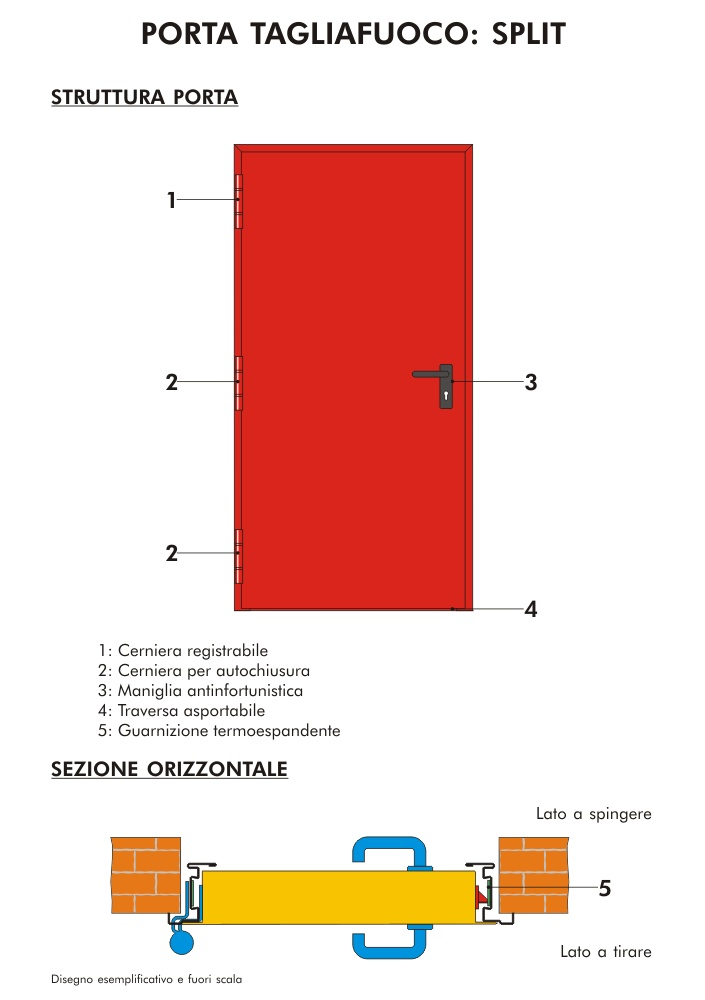

Technical Specifications

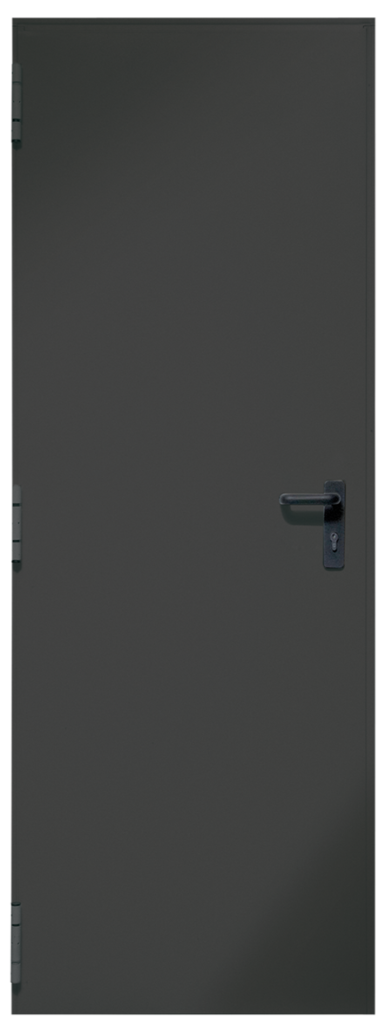

- The single-leaf doors of the series are reversible, which makes them extremely easy to use and with immediate delivery time.
- Door leaf with a total thickness of 65mm, made of double galvanized and pre-painted sheet metal thickness 0.7mm
- Internal reinforcement of the sheet at the points of possible placement of panic bar and return mechanism
- Type ‘Z’ case made of electro-galvanized sheet metal
- Standard fireproof lock
- Navel with skeleton key (possibility for mounting navel type Yale external type)

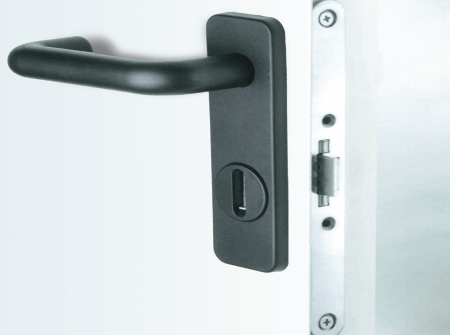

- Fireproof knobs in black color
- Height-adjustable steel hinges, one of them with spring for automatic door reset
- Heat inflatable seals for sealing the door in case of fire
- Certification mark (metal plate) placed on the side of the door
- The package includes installation and maintenance instructions
- Standard factory color is Light Ivory but upon request, in any RAL
- Delivery in a special reinforced protective box

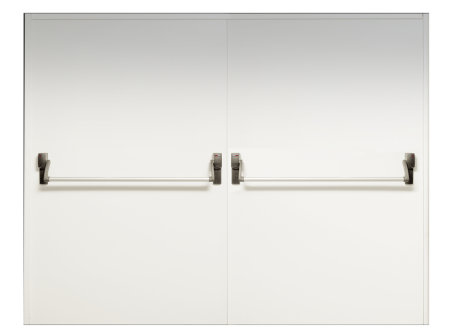

Reset mechanisms and panic bars are available on request, if required by the project.
| Available dimensions |
| Mansory opening width |
800-900-1000-1100-1200-1265-1350 |
| Mansory opening height |
2000-2050-2100-2150 |
| Available dimensions (in stock) |
| Mansory opening width |
800-900-1000 |
| Mansory opening height |
2050-2150 |
