Description

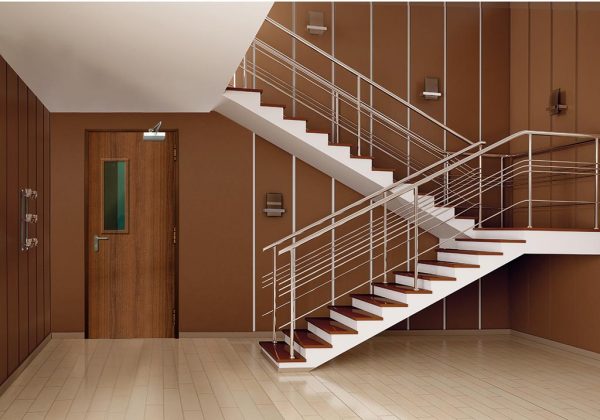

New Sigla is the metal/wood door that combines style and elegance but with an eye to the future.
Locking with fire resistance approval according to UNI EN 1634-1 and it is also certified in many Member States of the European area, with standard accessories and technical characteristics as from our production.

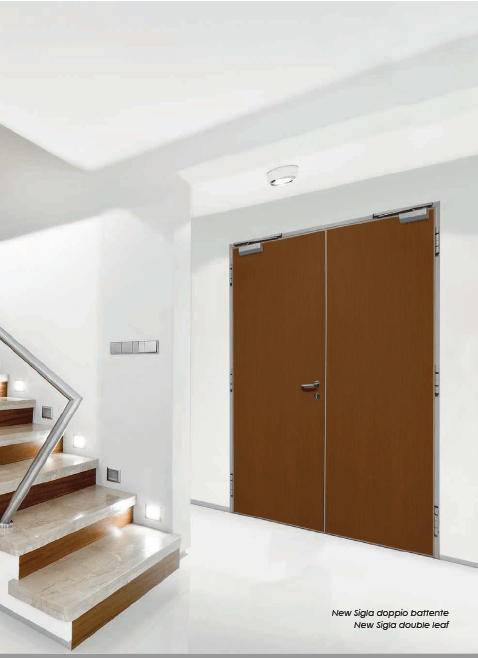

Single or double wing wood paneled steel fire doors, 3 sides, order measures within the wall opening.
New Sigla is a solution that perfectly meets the requirements of housing, public buildings, restaurants,
cinemas and wherever there is the need to combine fire insulation with the elegance of wood, thanks to the functionality of the many available accessories and its insulating properties. New Sigla is certified and approved for fire resistance according to the European EN 1634-1 standard, issued following specific tests that ensure compliance to strict standards, EI Classification. The term “EI” means the ability of a product to preserve, in the event of fire attack, certain characteristics for a set time.
This post is also available in:
Greek
Technical Specifications
- Z-shaped frame on 3 sides in dark brown epoxy-polyester powders painted steel with ties or bores for expansion bolts
- self-expanding seal
- 3 standard hinges, one of which is adjustable in height on painted steel ball and 2 for self-closure with helical torsion spring incorporated in the hinge
- Flush wing made with electrogalvanized sheets, high density insulation, single locking point mortise lock with Yale cylinder with 3 Yale keys, accident prevention handles (handle/handle) on matt black resin plaque, option with panic handles and/or panic bar, trim on the perimeter in the same color as the frame, lower automatic mobile sill and the door stop seal as standard on the frame, installation on brick walls in internal environments that are not exposed to the sun and/or rain
- 7 mm external flush paneling in stained Tanganyika
- chipboard veneering
- 7 mm internal flush paneling veneered in stained Tanganyika chipboard veneering
- Choice of veneering in other wood types
- Wing thickness without paneling: 65 mm, wing thickness including the panelling: 80 mm, total thickness of wing + frame: 90 mm.
Optional
- bolt-in frame recommended for concrete walls or historical value buildings
- panic handle and/or bar
- door closers
- electromagnets, rectangular glazed openings, and electro-handle for access control (available in non-standard measurements)
