Description
The MUTE series, which we exclusively represent in Greece and Cyprus, has been developed to achieve extremely high sound insulation in existing masonry and roofs of small thickness and low weight and unprecedented ease of installation.

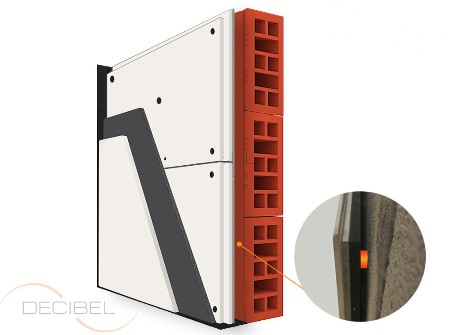

MUTE SYSTEM is thin point connected soundproofing system for walls and ceilings.

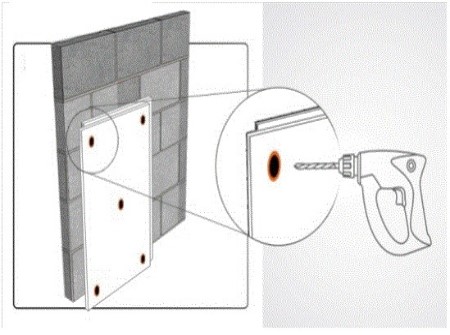

The system is easy to mount via specially designed anti-vibration DClox element, patented
in the EU. DClox point connection ensures less than 1% contact area between the soundproofing panels and the existing partition thus minimal sound transmission.
The main acoustical principle used in the systems is mass + spring + mass as in the electromechanical analogy.
We have created an extra thin and 4 times more effective system, mounted via specially designed anti-vibration DClox fastening elements.
What allows us to ensures the quality and efficiency of the systems is that its soundproofing parameters are simulated using FEM and after that verified with laboratory tests.
| Type | Thickness | Additional Insulation |
| MUTE 23 | 2,25 cm | + 9 έως 11 dB |
| MUTE 33 | 3,25 cm | + 12 έως 14 dB |
| MUTE 63 | 6,25 cm | + 15 έως 18 dB |
